Caltta eChat e720 PoC Radio

Product Overview

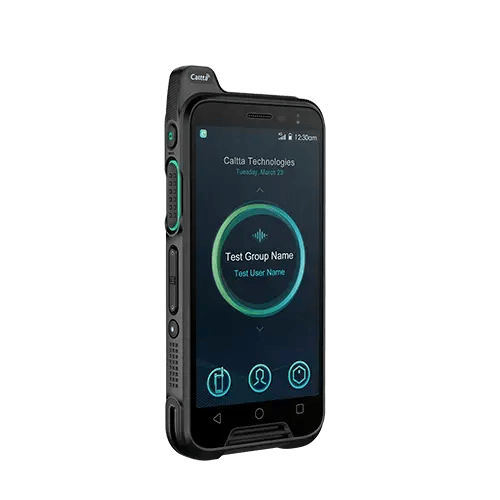

Meet the Caltta eChat e720

Part of our PoC radio range

The e720 from Caltta is a new generation cellular radio running on Android 11. This IP68 submersible dual SIM 4G/3G/2G device has a 4.7″ Colour touchscreen with 4200mAh large capacity detachable battery.

Its GMS ROM allows android applications to be side loaded while preventing end users from easily downloading apps for more secure business control.

This full functioning mobile phone features a dedicated side PTT button allowing the unit to seamlessly operate on the eChat POC platform. Man Down, NFC, Bluetooth and GPS are standard features on the e720.

Traditional Two-Way Radio vs Push To Talk Over Cellular (PTToC)

The two main options for your core communications are traditional two-way radio or newer 4G cellular radios, often referred to as either PTToC, PoC, LTE or push to talk. The main difference is that radio uses a closed network using repeaters to provide coverage, whilst PTToC or PoC radio uses devices with a SIM card that uses your mobile network or a local WiFi network to provide connectivity.

Caltta e720
Forecomms Icon

Specification

General
Network LTE/WCDMA/GSM
Frequency LTE TDD: B38/B39/B40/B41 FDD: B1/B3/B4/B5/B7/B8/B20/B28A/B28B
WCDMA B1/B5/B8 GSM B3/B8
Size ( H×W×D ) 141.8×70×20mm (without fixed antenna)
Weight About 260g
Display 4.7″ LCD, 1280×720 (supports glove touch)
Battery 4200mAh
Key PTT, Power, SOS, Volume up/down, 2x Programmable Key
Interface Type C (Data/Audio/Charging)
Indicator Red / Green
OS Deeply Customised Android 11
Chipset 8 Core A53 Processor, clocked at 2.0GHz
Memory (RAM+ROM) 4GB+64GB
Camera Rear: 13M pixel, AF, CMOS with flash, Front: 13M pixel CMOS
Bluetooth BT4.2
WLAN Wi-Fi 802.11b/g/n, 2.4G/5G, Support WiFi Hotspot
NFC Support 13.56M card reader
Location Support GPS/Glonass/BDS, AGPS
Man Down Support
Microphone Dual Mic with noise suppression
Sensor Gravity, Gyroscope, Geomagnetic, Proximity, Light
OTG Support, extendable for USB drive-free camera and other devices
Speaker Front diaphragm Speaker
Max Audio Power 2.5W
Card Slot Nano SIM×2, TF×1
Charging Type C, Desktop Charger (optional)
VoLTE Support
Environment
Operating Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C
ESD IEC 61000-4-2 (level 3) ±6kV (Contact) ±8kV(Air)
Dust and Water Proof IP68
Reliability MIL STD-810G

The Caltta e720 is perfect for use in the retail, leisure and service industries where coverage and instant communications indoors and out are of equal importance.
